Induction quenching machine is a type of induction heating machine. It employs a closed-loop system that uses an alternating current (AC) power source to generate high-frequency magnetic fields, which are used to rapidly heat and quench metal materials. This makes it an effective and popular choice for various applications such as steel processing, casting, and forging.
Because of its effectiveness and convenience, the induction quenching machine is used in many different industries. Its usage is wide-ranging, from metallurgical and electrical, to automobile and machinery manufacturing. It works by generating electromagnetic fields that heat the workpiece, and then rapidly quenching or tempering it by using either water or air.
Induction quenching equipment is a specialized machine that is designed to heat and cool metal materials quickly and efficiently. This machine has unique features that make it a powerful and precise tool for heating and cooling metal materials.
The induction power supply is the main component of this equipment, providing high-frequency magnetic waves to heat the metal material. Meanwhile, a load line monitors and controls the heating process to maintain the desired temperature. A capacitor stores energy and releases it during the heating process and helps keep the temperature from fluctuating. A transformer adjusts the power supply's output voltage and current for accurate control over the process. And an inductor generates a high-frequency magnetic field to heat the metal material. This inductor can have many forms, such as a horizontal type, vertical type, and special machine, to fit different needs.
The quenching system is responsible for cooling the metal material after it has been heated. It can be either a direct system, in which heating and cooling happen at the same time, or a separate system with a spray quench ring with quench holes that face the rotating part. A machine tool holds and rotates the metal material during the process to make sure it is heated and cooled evenly. Finally, a precise temperature control system keeps the temperature of the metal material constant throughout the process.
| Product Name | Parameters |
|---|---|
| Induction Quenching Machine | Temperature Control: Digital Display |
| Quenching Speed: 0-20m/min | |
| Quenching Precision: ±0.1mm | |
| Cooling System: Water Cooling | |
| Input Voltage: 3 Phase | |
| Quenching Depth: 0-20mm | |
| Control System: DSP+FPGA Full Digital Control | |
| Power Supply: AC380V/50Hz | |
| Safety System: Emergency Stop Button |
Induction quenching machines are versatile and widely used in many industries for heat treatment of metals and alloys. For hardening steel parts such as gears, shafts, bolts, and cutting tools, the steel is heated to a specific temperature and then rapidly cooled with a quenching medium like oil or water. Similarly, steel parts can be tempered -- a process to reduce the hardness while maintaining strength and toughness -- by using induction quenching after hardening. A case hardening process, which increases the wear resistance of steel parts, can be done by heating the steel to a specific temperature and then exposing it to a carburizing medium such as oil and slowly cooling it to allow the carbon to diffuse into the surface of the steel.
Induction quenching can also be used to heat treat non-ferrous metals like aluminum, copper, and brass, with variations in the temperatures and quenching media used as compared to the process of treating steel. Besides industrial usage, induction quenching machines are also used in research and development to study the effects of heat treatment on different materials and to develop new heat treatment processes.

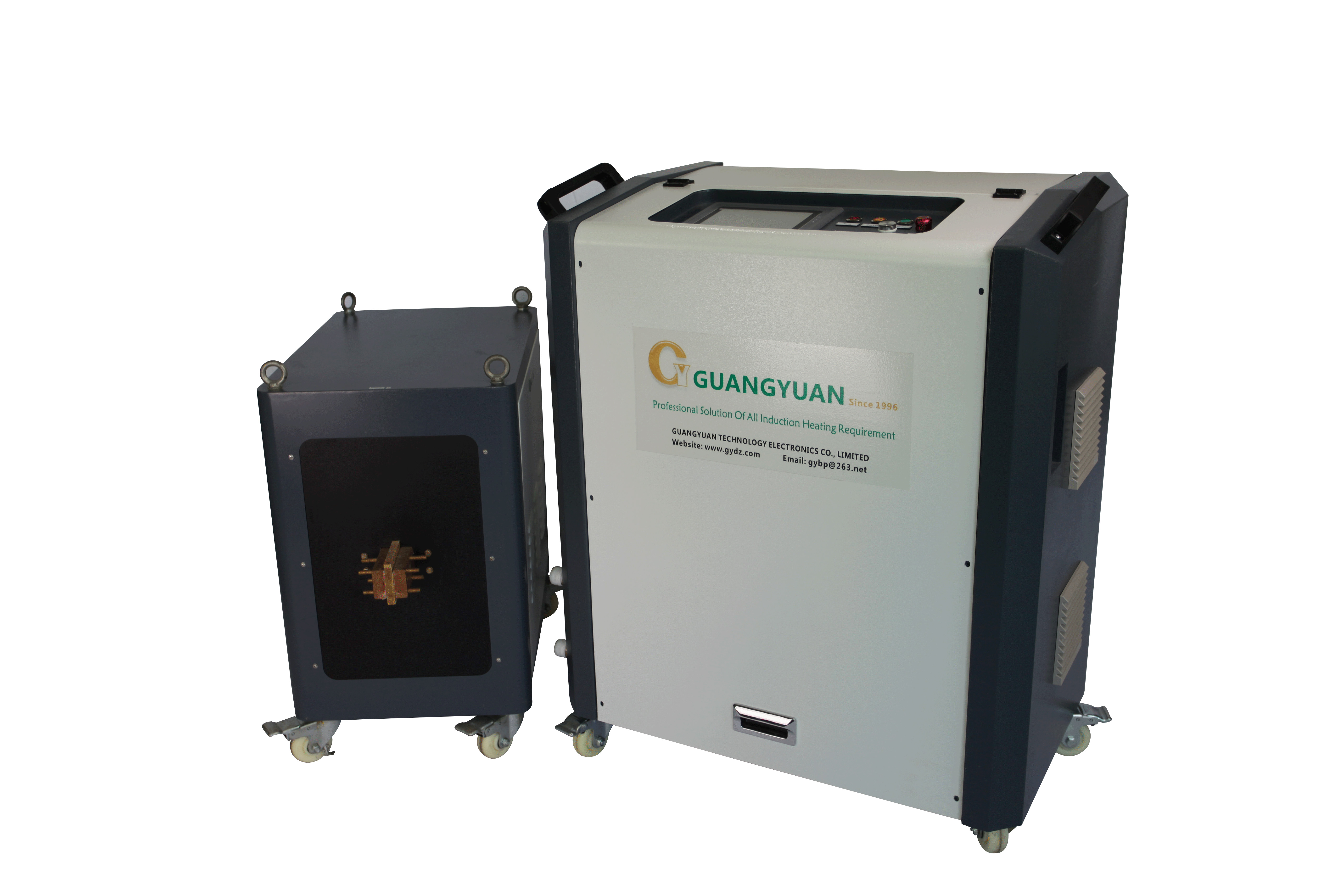

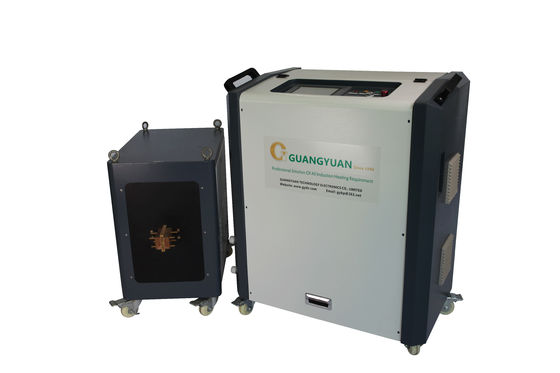

Induction Quenching Machine
Features:
We provide comprehensive technical support and service for our Induction Quenching Machines to ensure that our customers are able to maximize the use of their machines. Our technical support and service includes:
Our highly trained technicians are ready to provide our customers with the best quality service and support.
