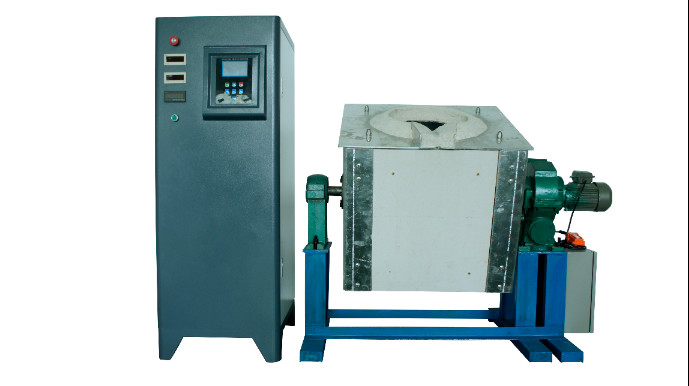

200KW Induction Melting Machine Equipment Energy Saving Full Digital Control

200KW Increased Productivity Touch Screen Induction Melting Machine For Metal Melting


INDUCTION MELTING MACHINE:

Induction melting furnace is an electrical furnace in which the heat is applied by induction heating principle to the metal. Induction furnace is used to melt iron and steel, copper, aluminum and precious metals.

Induction melting furnace is widely used in metal industry for melting or heating slab or rod in continuous casting plant because of good heating efficiency, high production rate and clean working environments.

MAIN CHARACTERISTICS:

An induction furnace consists of a nonconductive crucible holding the charge of metal to be melted, surrounded by a coil of copper wire. A powerful alternating current flows through the wire. The coil creates a rapidly reversing magnetic field that penetrates the metal. The magnetic field induces eddy currents, circular electric currents, inside the metal, by electromagnetic induction.[9] The eddy currents, flowing through the electrical resistance of the bulk metal, heat it by Joule heating. In ferromagnetic materials like iron, the material may also be heated by magnetic hysteresis, the reversal of the molecular magnetic dipoles in the metal. Once melted, the eddy currents cause vigorous stirring of the melt, assuring good mixing.

An advantage of induction heating is that the heat is generated within the furnace's charge itself rather than applied by a burning fuel or other external heat source, which can be important in applications where contamination is an issue.



The parameters of the 200KW Touch Screen 380V Induction Melting Machine For Metal Melting :

Model: GYTS-200KW

Max output power: 200KW

Smelting weight of steel, iron: 150kg

Smelting weight of aluminum, bronze, and other precious metals: 300kg

The parameters of the GYTS--200KW:

THE ADVANTAGES OF THE INDUCTION MELTING FURNACE:

The Advantages of Light Touch Screen Induction Heating Machine:

• It has a sensitive reaction speed;
• Light touch screen front panel switch are not easy to enter debris, dust, oil penetration; Also it is easy to clean and dustproof;
• Personalized design, simple and beautiful appearance,
• Reasonable internal structure design (Less internal lost; Light load; Accessories are not easy become hot)

Light Touch Screen Induction Heating Machine type Advantage for Melting:

• This equipment adopts advanced pulse density modulation power adjustment method, which controls the power size by adjusting the drive pulse generation density of the inverter power switch tube, referred to as PDM power adjustment;
• The main advantage of PDM power modulation method: It is to ensure that the operating frequency of the equipment is basically unchanged through frequency tracking technology, and is synchronized with the network resonance frequency, so that the inverter always works in the resonance state, has a higher power factor, and can be achieved The power switch tube always works in the soft switching state, which greatly reduces the switching loss and reactive loss.

We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.

Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
